The Himax High-Speed 2.5G PoE Switch is designed to deliver advanced network performance with both high-speed data transfer and power over Ethernet (PoE) capabilities, typically for use in growing networks, high-performance devices, and applications requiring high bandwidth and power delivery.It is widely used to power Wi-Fi 6/6E Access Points, High resolution IP cameras, VoIP Phones and Video Conferencing Systems in SMB business application.

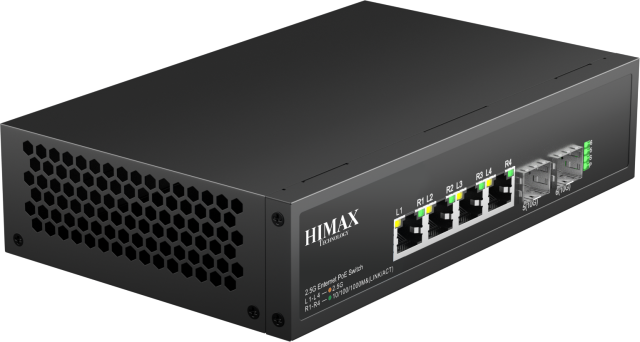

PS1402FT2G series unmanaged POE switches with four 10/100/1000/2500Mbps adaptive RJ45 ports and two 10-Gigabit optical ports. Each RJ45 port supports automatic rollover and line-speed forwarding. Ports 1 to 4 support PoE power supply and comply with IEEE802.3af/at standards. As a power over Ethernet device, ports 1 to 4 can automatically detect and identify powered devices that meet the standards and supply power to them through network cables. The storage and forwarding mode provides stable and reliable data transmission.
Model
PS1402FT2G
Provider Mode Ports
Fixed port
4*10/100/1000/2500 Base－T + 2*10GBase-X
Power interface
AC
LED Indicators
Power , speed, link/active
Optical fiber interface
SFP
Cable type&Transmission distance
Twisted-pair
0-100m（CAT5e,CAT6）
Monomode optical fiber
20/40/60/80/100KM
Multimode optical fibre
550M
Network Topology
Ring topology
No
Star topology
Yes
Bus topology
Yes
Tree Topology
Yes
Electrical Specifications
input voltage
AC 100~240V/50-60HZ
Total Power consumption
≤72W
Main board power
<8W
PoE Support
PoE port
1-4
PoE Protocol
802.3af，802.3at
PoE Pin Assignment
1,2+;3,6-
PoE Management
Yes
Layer 2 Switching
Switching capacity
60G
Packet forwarding rate
44.64Mpps
MAC address table
4K
Buffer
8.1Mbit
Forwarding delay
<10us
MDX/MIDX
Yes
Jumbo Frame
16Kbytes
Environment
Operating temperature
-10℃~50℃
Storage temperature
-40℃~70℃
Relative humidity
10%~90%（non-condensing）
Thermal methods
Fanless design, natural heat dissipation
MTBF
100,000h
Mechanical Dimensions
Product size
190*140*44mm
Installation Method）
Desktop installation
Weight
0.75KG
EMC&INGRESS PROTECTION
Surge protection of Power
6KV
Surge protection of Ethernet port
4KV
ESD
8K~15K
Free fall
0.5m
Certification
Certification
CE/FCC/RoHS
Package Contents
Switch
1 pcs
Power cord
1 pcs
Quick installation guide
1 pcs
