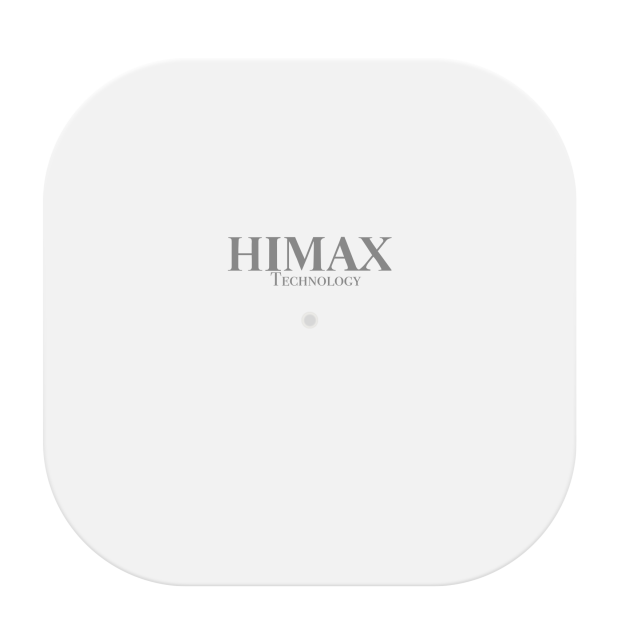

APN034E

Model

APN034E

Chip Scheme

MTK

Compliance

with standards

IEEE802.3u MDI / MDIX 10/100Mbps

IEEE802.11/b/g/n

DDR

64MB

Flash

16MB

Network interface

1* Port 10/100M Auto MDI/MDIX RJ45 WAN port

1* 10/100M Auto MDI/MDIX RJ45 LAN port

Power

supply mode

DC12V input or POE48V input

Antenna

Built-in 3dBi * 2 omnidirectional antenna

Button

Reset Button *1

Indicator LED

WAN、LAN

Transfer rate

11b: 11M, 5.5M, 2M, 1Mbps

11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps

HT20:6.5M, 13M, 19.5M, 26M, 39M, 52M, 58.5M, 65M,13M,26M,39M,52M,78M,104M,117M 81M, 104M, 108M, 117M,130M

HT40:13.5M,27M,40.5M,54M,81M,108M,121.5M,135M,27M,54M,81M,108M,162M,216M,243M,270M

Transmission mode

Direct Sequence Spread Spectrum（DSSS）

Modulation

OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK

RF frequency range

China : 2412 GHz ~ 2462 GHz (1-13Channel)

Chip Scheme

CPU：MTK7628

Compliance

with standards

IEEE802.3u MDI / MDIX 10/100Mbps

IEEE802.11/b/g/n

Output power

802.11b

1-11Mbps

18.0 ±2.0dBm

802.11a

6Mbps

17.0 ±2.0dBm

54Mbps

16.0± 2.0dBm

802.11n

HT20

MCS 0-3

MCS 4

MCS 5

MCS 6

MCS 7

HT40

MCS 0-3

MCS 4

MCS 5

MCS 6

MCS 7

Sensitivity

IEEE 802.11b

1Mbps≦-90dBm

11Mbps≦-86dBm

IEEE 802.11g

6Mbps≦-89dBm

54Mbps≦-70dBm

IEEE 802.11n

HT 20

MCS 0≦-85dBm

MCS 7≦-67dBm

HT 40

MCS 0≦-82dBm

MCS 7≦-64dBm

Software Specification

MESH networking

support

Micro AC function

Support (When there is no AC in the network, the AP can be set to Micro AC, and logging in to any of them can view and manage all APs in the network)

Number of SSIDs

4（2.4GHz）

Wireless encryption

Supports encryption/non encryption/hiding

User isolation

Terminal isolation

Wireless MAC address filtering

Support for black and white lists

VLAN settings

support

Transmission power setting

support

Bandwidth settings

support

Channel Settings

support(Supports automatic optimization of optimal channels)

Wireless client limit

support

Device management

Support Chinese, English, Spanish WEB management

System log

support

Restore factory settings

support

Backup Configuration

support

Import Configuration

support

Software upgrade

support

Network Diagnostics

support

Wireless Specification

Wireless standards

IEEE 802.11/b/g/n

Wireless rate

2.4GHz: 300Mbps

Wireless encryption method

WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK

Wireless Specification

Working Temperature

-10℃~55℃

Storage Temperature

10%~90% RH（non-condensation）

Working Humidity

-40℃~80℃

Storage Humidity

5%~90% RH （non-condensation）

Product Size

190*190*50mm
